Cable Drum Trailers

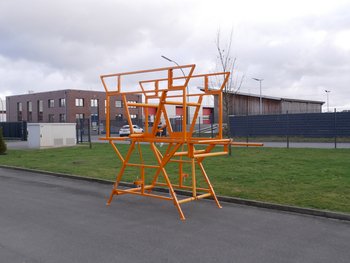

Reel for Pipe Assemblies RH

  • designed for the easy transport and simple unwinding of long pipes (e.g. for water or gas), delivered as an assembly
  • easy loading - the bundled pipe is rolled into the offset reel by hand
  • safe transport with LANCIER cable drum trailers
  • on site, these trailers serve as take-off stand
  • equipped with easy-rollers for friction free unwinding
  • can be used for two different pipe assemblies

Productparameter

Type RH 30 RH 37
Pipe Assembly Diameter max. 3000 mm max. 3700 mm
Pipe Assembly Width max. 1150 mm max. 1150 mm
L x W x H 3780 x 1800 x 2500 mm 3780 x 1800 x 2915 mm
Weight 320 kg 350 kg
Order No. 69292 69292-2
