Cable Pulling Grips

Cable Mounting-Grips

  • for installation and tension relief

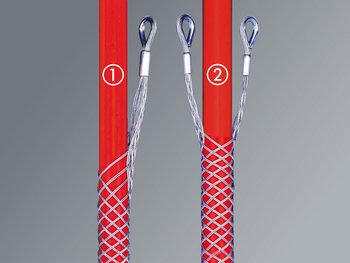

  • with one (1) or two (2) loops including thimbles

*at three-fold safety

Productparameter

Type For Cable Diameter max. Pulling Force* Length Weight Order No.
1 10 - 15 mm 3,4 kN 600 mm 0,10 kg 01925 Watchlist
1 15 - 20 mm 6,8 kN 600 mm 0,18 kg 01926 Watchlist
1 20 - 25 mm 6,8 kN 600 mm 0,20 kg 01927 Watchlist
1 25 - 30 mm 8,1 kN 600 mm 0,22 kg 01928 Watchlist
1 30 - 40 mm 11,7 kN 600 mm 0,31 kg 01930 Watchlist
1 40 - 50 mm 16,0 kN 600 mm 0,44 kg 01932 Watchlist
1 50 - 60 mm 16,0 kN 600 mm 0,50 kg 01933 Watchlist
1 60 - 70 mm 21,3 kN 600 mm 0,55 kg 01935 Watchlist
2 10 - 15 mm 3,4 kN 600 mm 0,10 kg 01936 Watchlist
2 15 - 20 mm 6,8 kN 600 mm 0,18 kg 01937 Watchlist
2 20 - 25 mm 6,8 kN 600 mm 0,20 kg 01938 Watchlist
2 25 - 30 mm 8,1 kN 600 mm 0,22 kg 01939 Watchlist
2 30 - 40 mm 11,7 kN 600 mm 0,31 kg 01941 Watchlist
2 40 - 50 mm 16,0 kN 600 mm 0,44 kg 01943 Watchlist
2 50 - 60 mm 16,0 kN 600 mm 0,50 kg 01944 Watchlist
2 60 - 70 mm 21,3 kN 600 mm 0,55 kg 01946 Watchlist
