Continuous Duct Rods

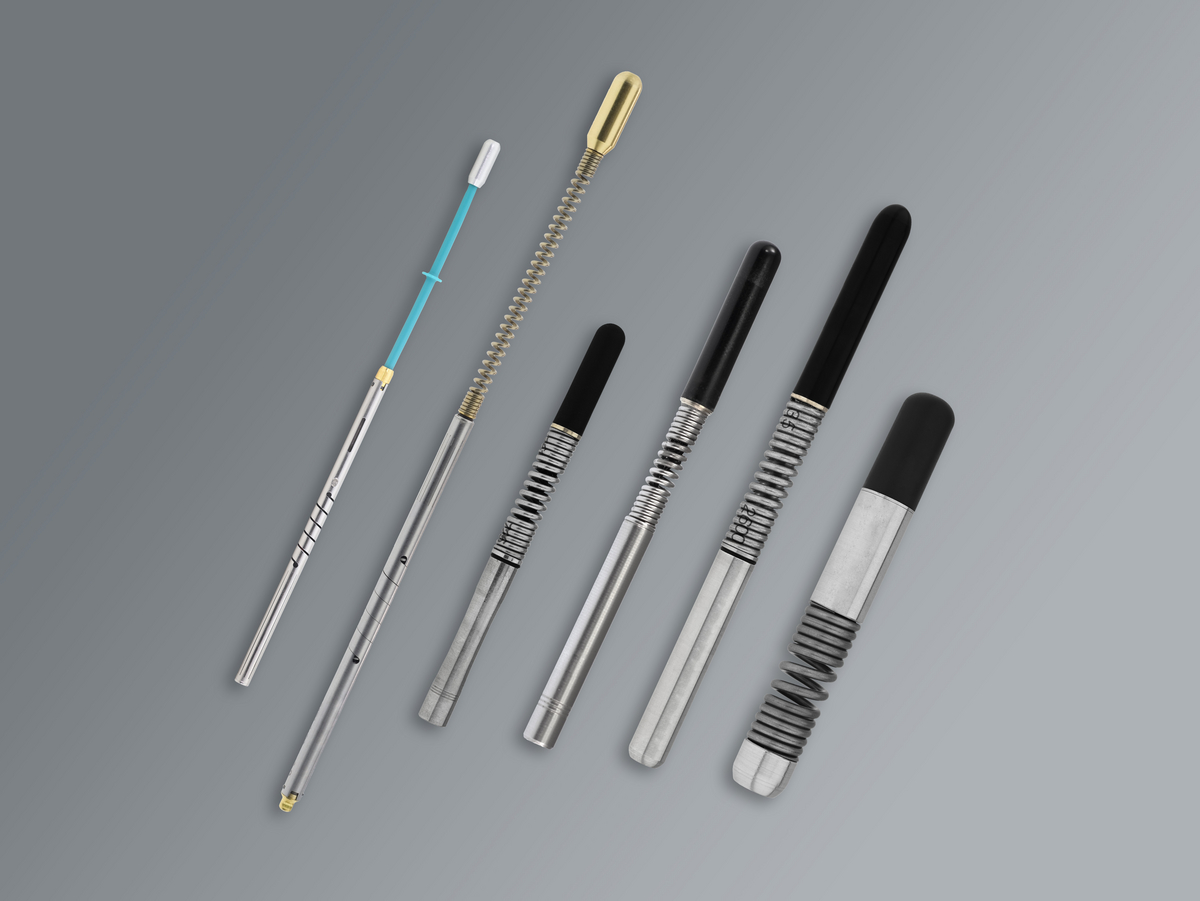

Mini Transmitter
- for the calibration of Microducts
Productparameter
| For Internal Micro Duct Diameter | Diameter x L | Localization Depth | Weight | Order No. | |
|---|---|---|---|---|---|
| 3,5 - 6 mm | 2,8 x 61 mm | max. 2,1 m | 1 g | 80957 | Watchlist |
| 6 - 8 mm | 4,6 x 94 mm | max. 2,3 m | 4,5 g | 78330 | Watchlist |
| 8 - 10 mm | 6,4 x 84 mm | max. 2,0 m | 9 g | 76909 | Watchlist |
| 9 - 12 mm | 7,5 x 114 mm | max. 5,0 m | 15 g | 78251 | Watchlist |
| 12 - 16 mm | 9,0 x 137 mm | max. 5,0 m | 35 g | 77492 | Watchlist |
| min. 28 mm | 18,0 x 86 mm | max. 7,0 m | 61 - 70 g | 77625 | Watchlist |
