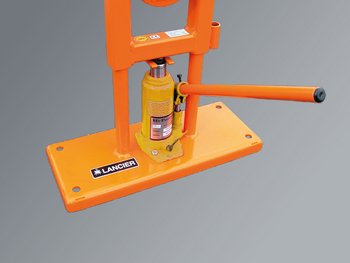

Drum lifting, storing and coiling
- hydraulic operation
- used for lifting cable or rope drums for free rotation
- high stability
- with chromium plated piston rod
- only short stroke necessary due to height-adjustable carrier shells
- mobile (except type 20)
Productparameter
|
Type
|
20
|
30
|
50
|
|
Payload/Pair
|
4000 kg
|
6000 kg
|
10000 kg
|
|
For Drum Diameter
|
900 - 1600 mm
|
900 - 2100 mm
|
900 - 3200 mm
|
|
Notches
|
4
|
7
|
13
|
|
L x W x H
|
500 x 200 x 800 mm
|
500 x 460 x 1120 mm
|
750 x 460 x 1700 mm
|
|
Weight
|
21 kg
|
46 kg
|
69 kg
|
|
Order No.
|
77146
|
01151
|
01152
|
|
