Drum lifting, storing and coiling

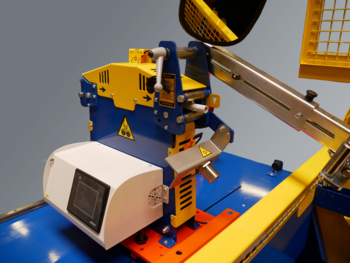

Recoiling-Equipment TR 147
- cable drum and coiling machine
- continuously variable electric drive (230 V/1.5 kW)
- mechanical counter for the cable length
- stable steel construction with mobile frame
- 2 lifting arms with manual adjustable pintles
- electro-hydraulic drum lifting (TR 147 FH)
- with ball bearing sliding carriage for the length measuring equipment
- protection grid with safety switch
- pre-selection counter for motor shut-down
- electronic continuously variable drum drive and automatic drum brake
Productparameter
| Type | TR 147 F | TR 147 FH |
|---|---|---|
| Cable Diameter | 10 - 40 mm | 10 - 40 mm |
| Payload | max. 1500 kg | max.1500 kg |
| Coiling Speed | 5 - 80 rpm | 15 - 80 rpm |
| Drum Diam. x W | 600 - 1400 x 350 - 850 mm | 600 - 1400 x 350 - 850 mm |
| L x W x H | 2400 x 1600 x 1900 mm | 2700 x 2000 x 1900 mm |
| Weight | 700 kg | 700 kg |
| Order No. | 78247 | 78248 |
